Weighing

Hanging Crane Weighing System

• Easy portability.
• Rugged housing.
• Rechargeable battery.
• Remote control operation.
• Convenient rotating design.
• Displays kg units of measure.
• AC adapter provided for charging battery.
• Ultra-bright LED display, large view area.
• 150% safe overload, 300% ultimate overload.
• Remote control operation from up to 30m (100 feet).
• Data logging system
• USB/Printer data storage system
• Optional wireless weight indication in Jumbo Display
• Indicator based/ PLC-HMI based control panel

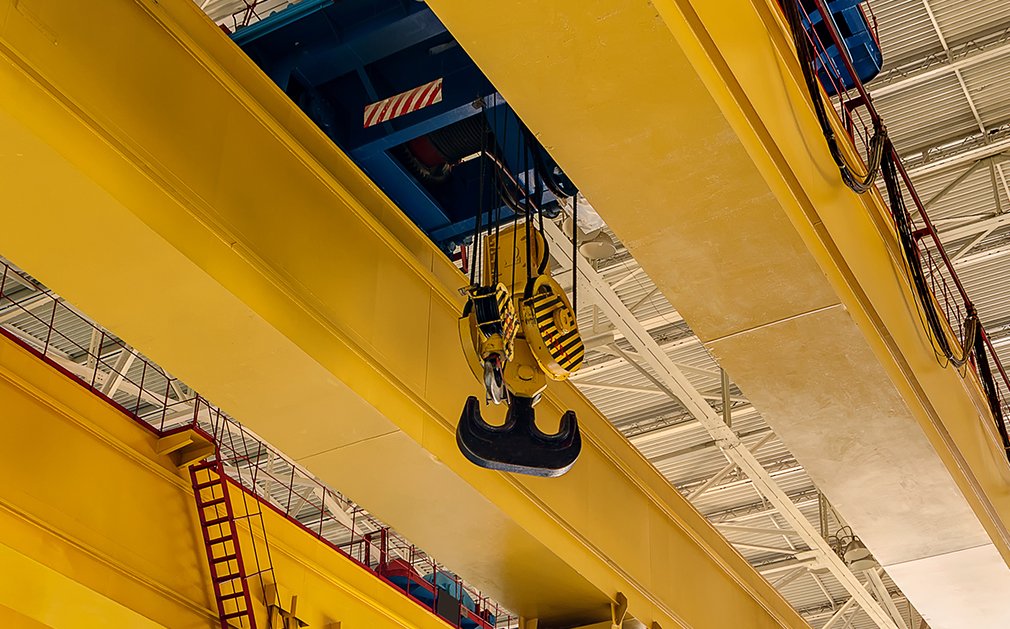

E.O.T Crane Weighing

• Weight Indicator with 24 bit internal resolution
• High-intensity large figure display of 100/200mm provided for better visibility
• Optional facility for wireless transmission of weight display

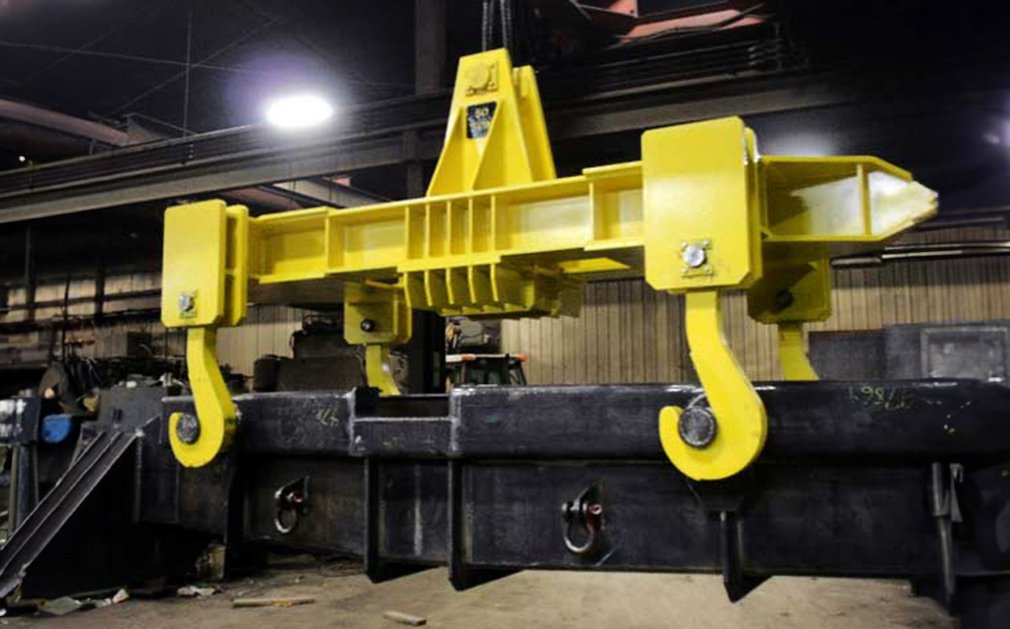

Tundish Weighing

• Multiple A-D converter instrumentation-based system
• High-temperature load cells (400°F)
• Increased automation of the billet casting process

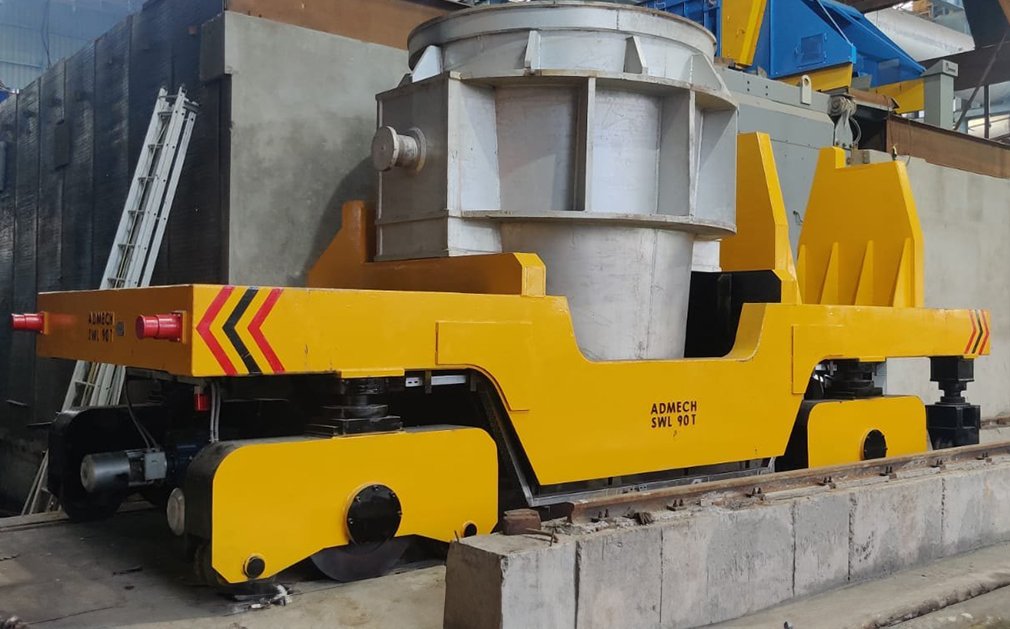

Ladle Car/Scrap Car/Turret Weighing

• Strain gauge load cells of compression/double ended beam types
• Load cells in stainless steel (IB68) are used
• Load cells available in D1 & C3 class, suitable temperature grade
• Load cell mounting accessories are available in MS nickel plated with constrainer assemblies, shock observers etc.
• Weight transmission by wireless method available

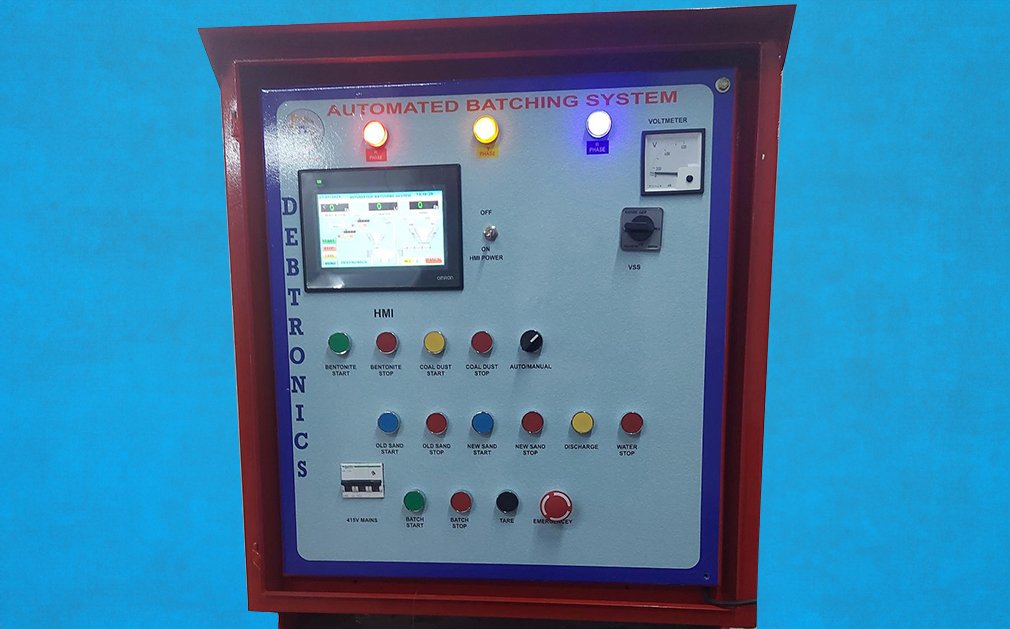

Bentonite Coal Dust & Sand Weighing Control Panel for Foundry Application

• Ensures accurate measurement of Bentonite, Coal Dust, and Sand for optimal batch consistency
• Automates the weighing process to enhance efficiency and reduce human errors
• Flexibility to adjust and fine-tune batch settings according to specific production requirements
• Tracks and stores critical data for material usage, enabling better process control and decision-making
• Equipped with overload protection to safeguard the equipment and ensure smooth operations
• Intuitive design with easy-to-use controls for seamless integration into the production line

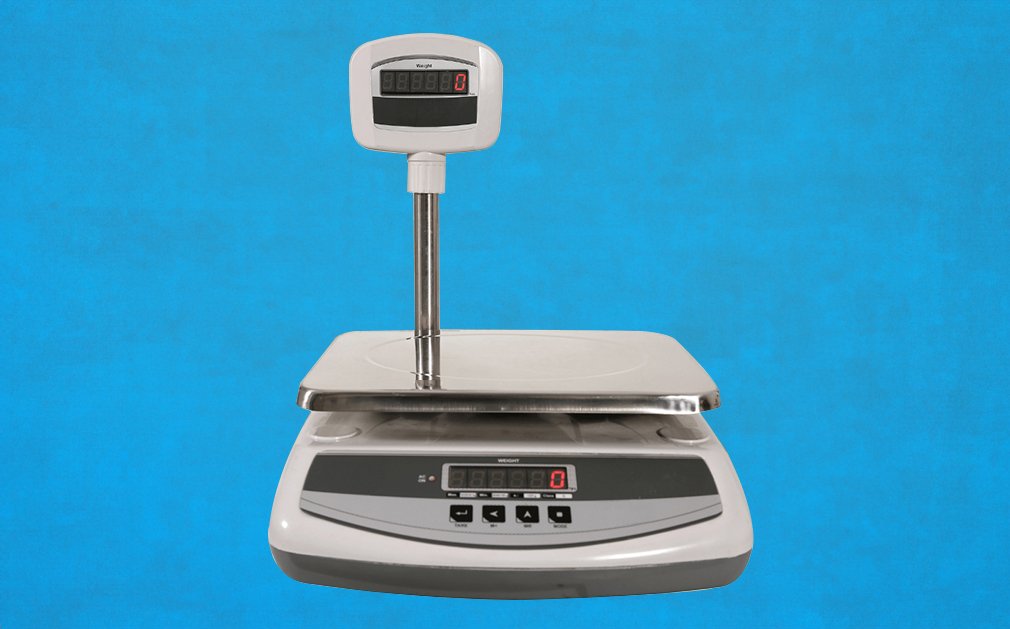

Platform/ Tabletop Electronic Weighing scales

Platform/ Tabletop Electronic Weighing scales for domestic and commercial use.

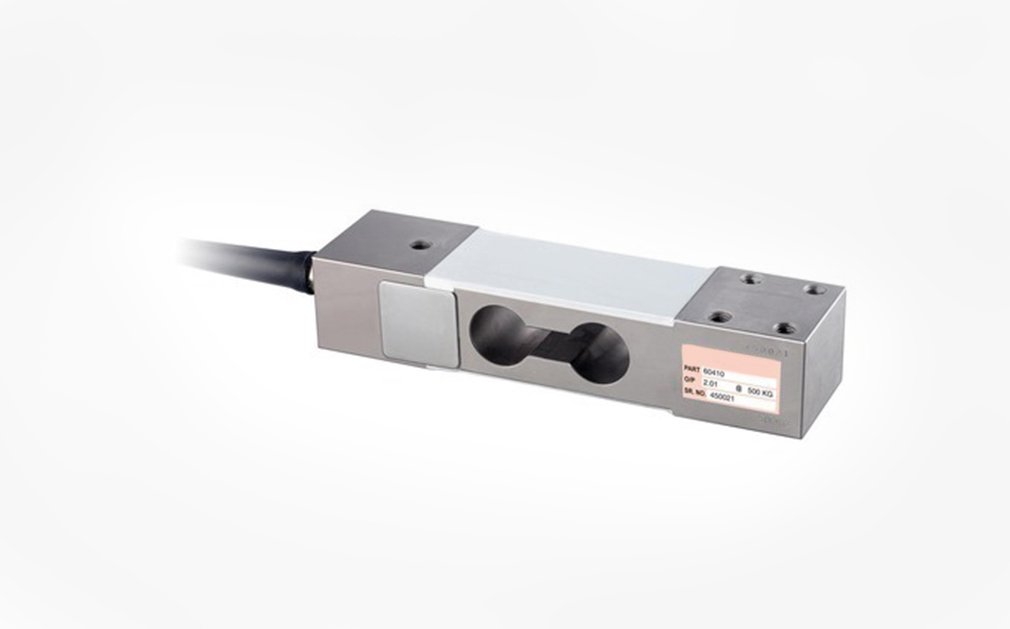

Single Point Off – Centre Load Cells

• CE Rated
• Single point capability for platform scales
• Minimum error for off centre loading
• Supports the pan size of 750 X 750 mm
• Low profile, compact and light weight
• 100Kgf to 1500Kgf Capacities offered
• Stainless steel construction offered for hygienic and corrosive applications

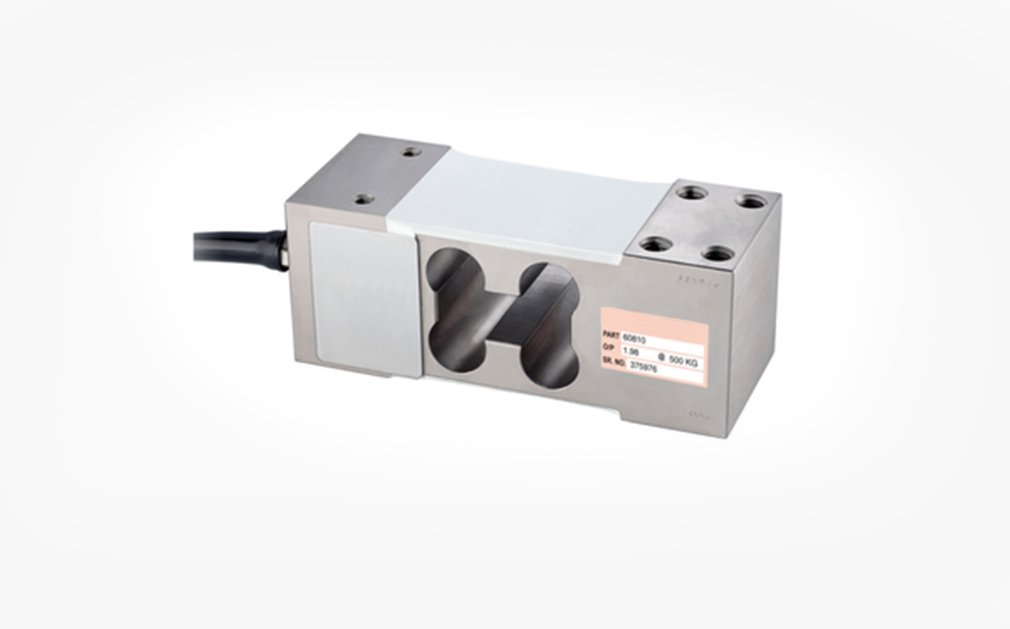

Single Point Platform Load Cell

• CE Rated
• Single point capability for platform scales
• Minimum error for off center loading
• Supports the pan size of 1000 X 1000 mm
• Low profile
• 500Kgf to 3000Kgf Capacities offered
• Moisture proof sealing

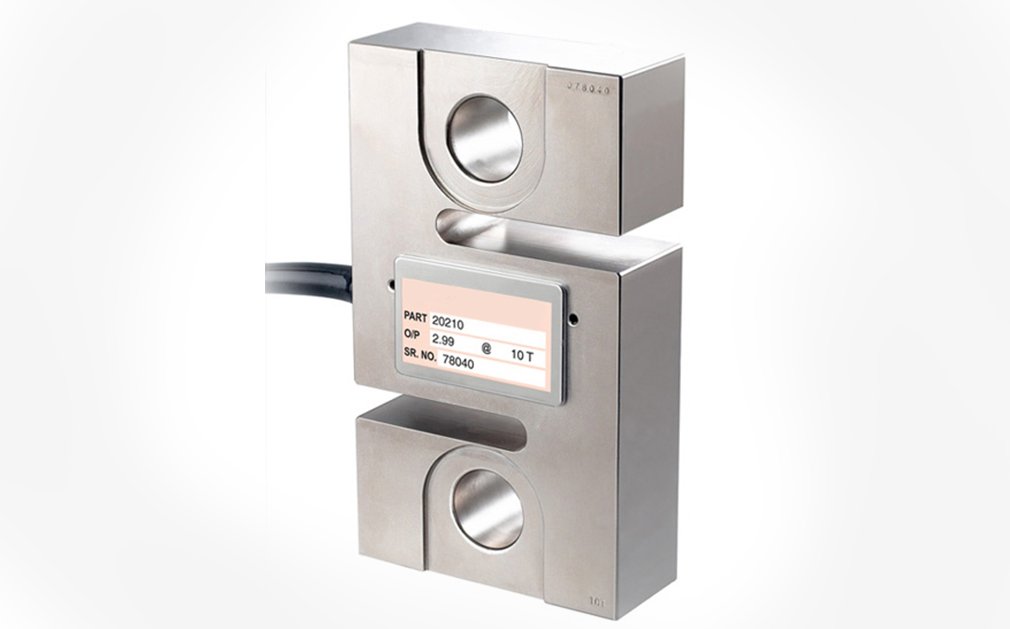

S Type Beam Load Cell

• 1.5, 2, 3, 5, 7.5, 10, 15, 20 TF Capacities available
• CE Rated
• High Alloy Tool Steel construction for resistance against shock and overload
• Complete Environmental Protection - IP68 class - Laser Welded is available optionally
• Standardized output (3.0 ± 0.25%) available on request
• Can be customized to suit customer’s requirements
• High Temperature version can be provided on request

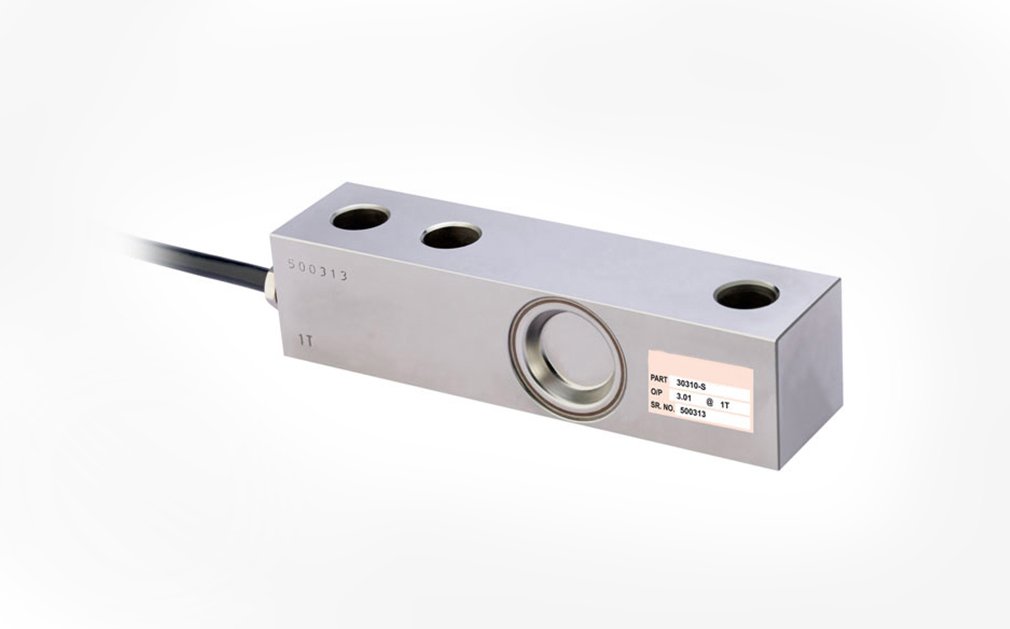

Single Ended Shear Beam Load Cell

• CE Rated
• 500 kgf to 10 TF Capacities available
• High Stainless Steel construction for shock load
• Laser Welded Complete Environmental Protection – Meets IP 68 class
• Standardized output 2.0 ± 0.25% available
• Can be customized to suit customer’s requirements
• High Temperature version can be provided on request

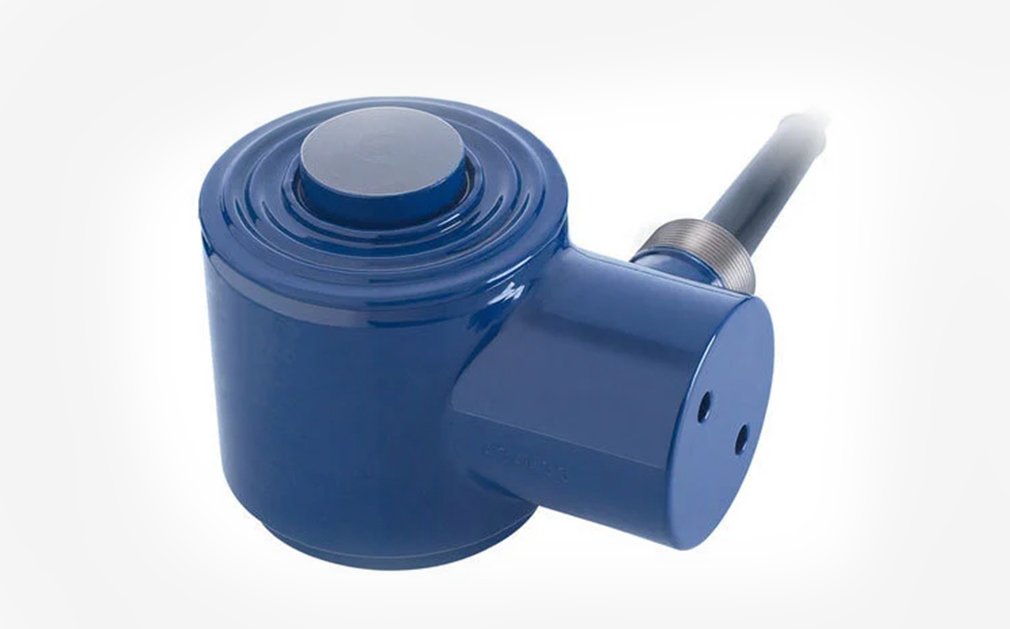

Canister Load Cell - Multi- Column Linearized

• CE Rated
• 5 TF to 500 TF capacity
• Compact & Low Profile
• Dual Bridge for sensor redundancy can be provided optionally

Double Ended Shear Beam Load Cell

• CE Rated
• 5 TF to 100 TF capacities offered (Standard Capacities: 5, 10, 15, 20, 23, 30, 40, 50, 75, 100 TF)
• Triple-Sealing
• Electroless Nickel Plated

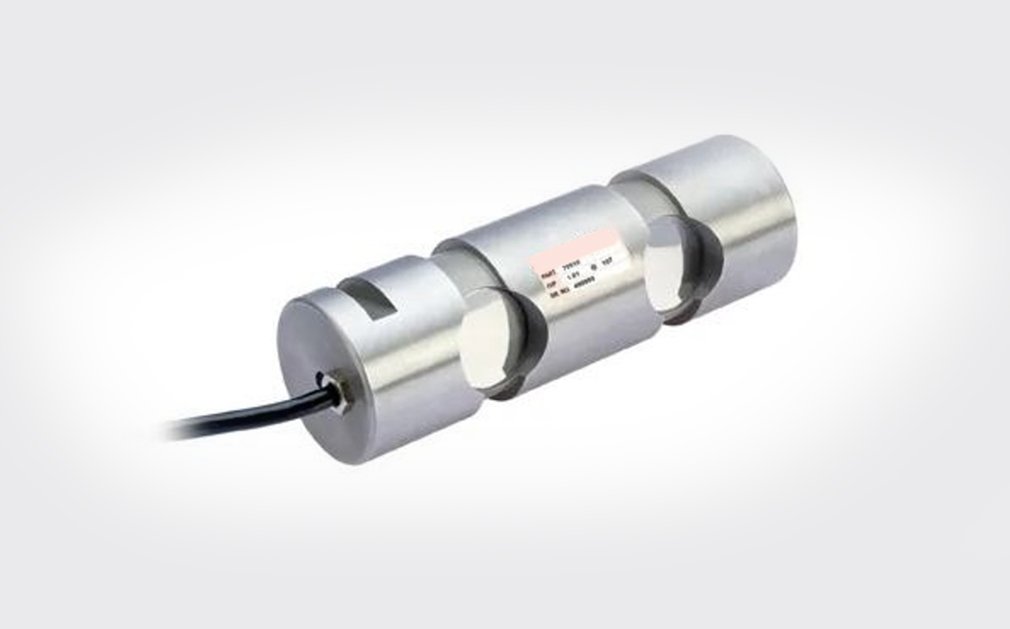

Load Cell Pin Type

• CE Rated
• Available in capacities of 0 - 0.5 to 0 - 400 TF
• Meets complete environment protection IP 65 class
• Standard 1 mv/v output sensitivity is available
